Quick adaptors for PE pipe-AOFT08

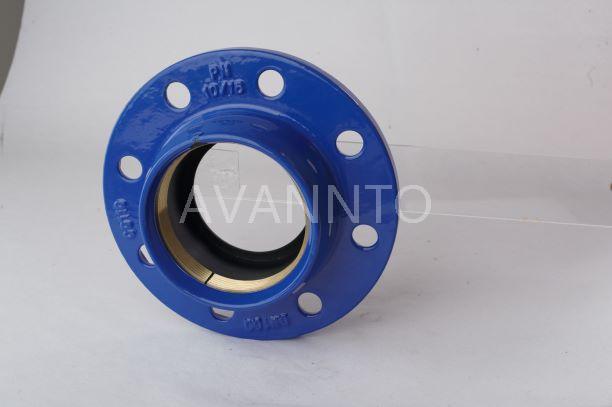

Flange adaptor(Quick adaptor)for U-PVC and PE pipes Enables self-locked mechanical jointing of a flange and a pipe. Description High performance: - Guaranteed sealing with shut-off seal and antiflow ring .- Corrosion protection: epoxy powder coating. Ease and speed of installation: - Angular deflection: ± 3. - Single bolting. Conformity to standards: - EN 1092-2: Flanges and their joints. Circular flanges for pipes, valves, fittings and accessories, PN designated. Part 2: Cast iron flanges. - EN 12842: Ductile iron fittings for U-PVC or PE piping systems Requirements and test methods. - ISO 2531: Ductile iron pipes, fittings and accessories and their joints for water applications - ISO 7005-2: Metallic flanges and cast-iron flanges. - ISO 7483: Dimensions of gaskets for use with flanges to ISO 7005. Approval: - WRAS Approval for drinking water consumption. Note: - This harnessed coupling accommodates the end load due to the working pressure. It does not prevent from the magnitude of the pipe system. - Vertical assembly upward is not allowed Technical data Range: - From DN 50 to 400 for U-PVC and PE (PE 80 or PE 100 PN16) pipes PN16 Flanges drilling: - ISO PN 10/16 - Double drilling ISO PN 10 / ISO PN 16 Temperatures: from 0° to +30°C. Applications Drinking water networks. Fire protection networks. Irrigation networks. For complete restrained networks or vertical assembly, please read the setting instructions.
